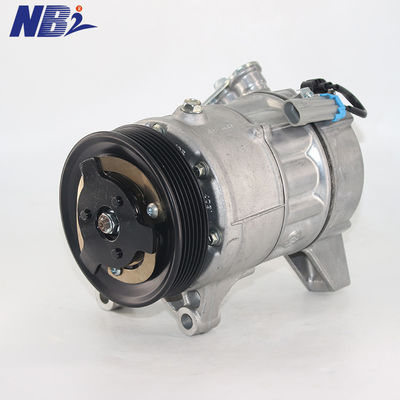

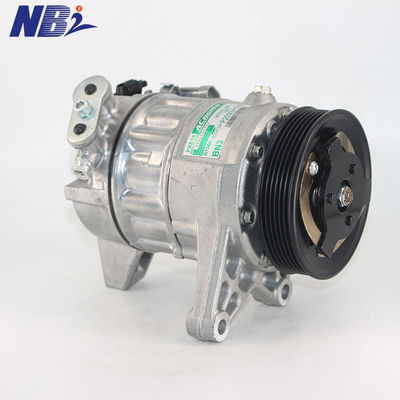

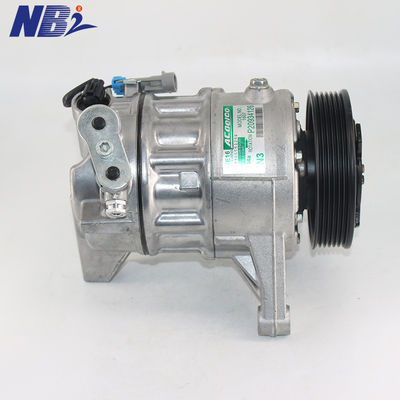

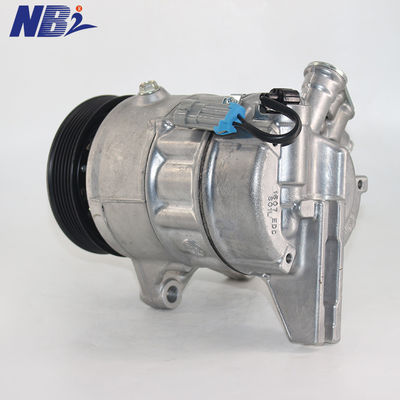

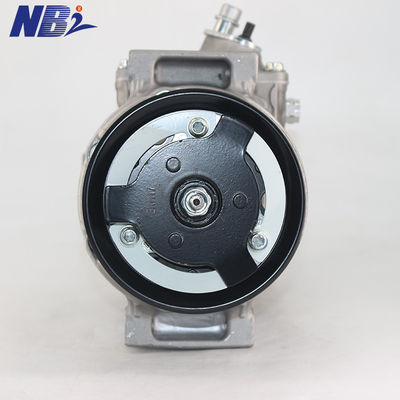

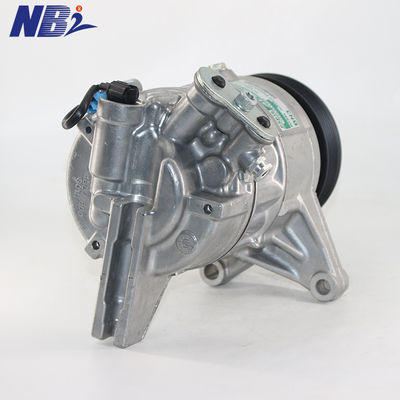

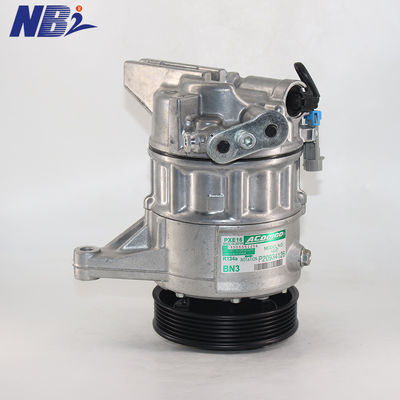

Car AC Compressor 12V 20934126 Regal Air Conditioning Compressor For Buick Lacrosse 3.0 2009

Name: Car AC Compressor 12V 20934126 Regal Air Conditioning Compressor For Buick Lacrosse 3.0 2009
Brand: GUANG ZHOU CFY C&U AUTOMOBILE AIR CONDITIONER CO.LTD
SKU: 20934126
Availability: InStock

Brand Name:	NBT
Model Number:	20934126
MOQ:	1pc
Price:	Negotiation
Payment Terms:	L/C, T/T, MoneyGram, Western Union
Supply Ability:	10000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO9001

Type:

Ac Compressor

Place Of Origi:

Guangdong, China

Brand Name:

NBT

OE NO:

20934126

Car Model:

For Buick Lacrosse 3.0 2009

Quality:

100% Professional Tested

Product Name:

Ac Air Compressor

Warranty:

12 Months

Refrigerant:

R134a

Condition:

100% New

Size:

Standard Size

Voltage:

12V

Application:

Car Air Conditioner System

Packing:

Neutral Packing

Grooves:

5pk

Function:

Car Air Conditioning

Keyword:

Car Ac Compressors

Packaging Details:

Wooden box packaging / carton packaging

Supply Ability:

10000pcs/month

Highlight:

Car AC Compressor 12V

20934126

Regal Air Conditioning Compressor

Product Description

High Quality Auto Car AC Compressor 12V For Buick Lacrosse 3.0 2009 /Regal air conditioning compressor20934126

Products Description

Brand Name	NBT
Place of Origin	Guangdong, China
OE NO.	20934126
Size	OEM standard
Warranty	1 year
Condition	New
Car Model	For Buick Lacrosse 3.0 2009
Application	Car Air Conditioner System
Certification	ISO 9001
OEM	OEM Services Provided
Condition	100% Brand New
Quality	100% Professional Tested
Voltage	12V
Function	Car Air Conditioning
delivery time	3-15 Days
Product Name	Ac Air Compressor
Type	Air Conditioner Compressor

Company advantages:

NBT Automotive Air conditioning Parts Co., Ltd. is a professional manufacturer engaged in the wholesale of automotive air conditioning system products. Our company has the following advantages:

1. Price competitive advantage

2. Complete product range and sufficient inventory

3. Strict quality control system to ensure the high quality of each product

4. 1-3 days quick proofing to meet your urgent needs

About Compressors

1)Rotary vane compressors consist of a rotor with three or four vanes and a carefully shaped

rotor housing. As the compressor shaft rotates, the vanes and housing form chambers.

The R134a is drawn through the suction port into these chambers, which become smaller as

the rotor turns. The discharge port is located at the point where the gas is fully compressed.

The vanes are sealed against the rotor housing by centrifugal force and lubricating oil. The

oil sump and oil pump are located on the discharge side, so that the high pressure forces oil

through the oil pump and then onto the base of the vanes keeping them sealed against the

rotor housing.

During idle an occasional vane noise from the compressor may be heard. This is due to the

time taken for lubricating oil to circulate through the A/C system.

2)Scroll type - Sanden

This compressor uses a unique design with two scrolls, one fixed and one is movable, both are inter-leaved.

The movable spiral is able to ORBIT or oscillate without actually fully rotating. The movable scroll is connected

to the input shaft via a concentric bearing.

As the movable spiral oscillates within the fixed spiral, a number of pockets are formed between the spiral. As

these pockets decrease in size the refrigerant is squeezed, the pressure increases and is discharged

through a reed valve at the discharge port in the rear section of the compressor.

3)Variable stroke - Harrison V5

The Delphi (Harrison) V5 compressor is a non-cycling variable displacement compressor.

The compressor varies displacement to control capacity to meet A/C system demand at all operating conditions. The compressor features a variable angle wobble plate in five (V5) cylinder axial piston design.

Displacement is controlled by a bellows actuated control valve located in the rear cylinder head. This control valve senses and responds to the system suction pressure or A/C system demand.

Through regulation of compressor crankcase pressure, the wobble plate angle, and therefore compressor displacement is variable.

In general, the compressor discharge pressure is much greater than the compressor crankcase. Which is greater than or equal to the compressor suction pressure.

At maximum displacement, compressor crankcase pressure is equal to the compressor suction pressure.

At reduced or minimum displacement, the compressor crankcase pressure is greater than the suction pressure

FAQ

Q1. How is quality ensured?

A: All our processes strictly adhere to ISO-9001 procedures. And we have a one year quality warranty B/L issue date.

If the product does not work property as described, and the problem is proven to beat our fault, we will provide exchange services for the same specific item.

Q2. Do you make customer' s auto AC parts?

A:Yes,you can send us samples and we can develop the new models especially for you.

Q3. What about delivery time?

A: lf we have stock of the item you need; we can send goods to you within 2 working days after deposit or 100% payment into our bank account. If we don' t have stock. The time to make each product is different generally, it takes 1 to 15working days.

Q4. How does to control your products?

A: 1.There is advanced equipment, professional and technical workers in the factory

2. Factory will have sample testing on quality before shipment

3.Our QC (QUALITY CONTROL) will check the quality of each product before shipment.

Q5. What about your packing?

A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
