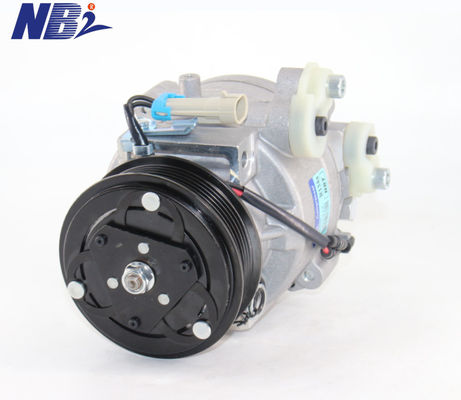

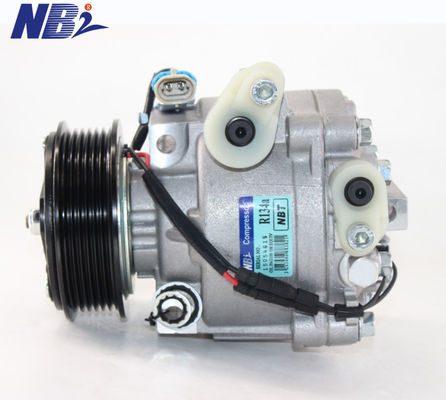

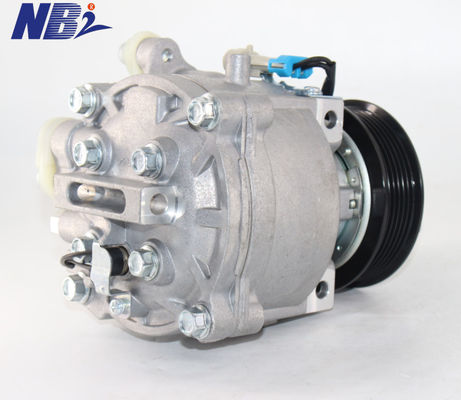

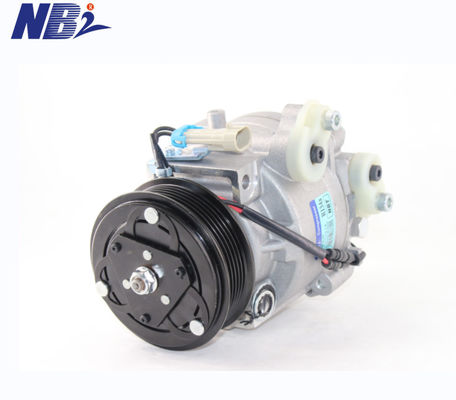

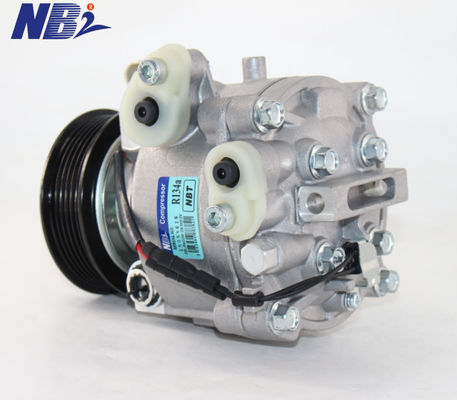

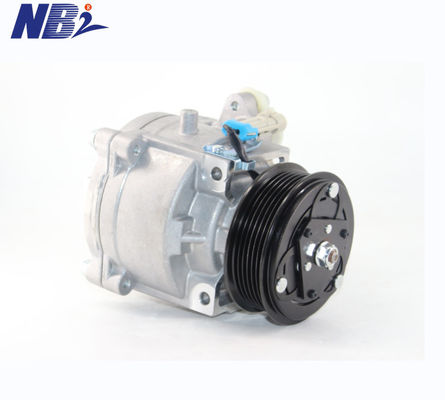

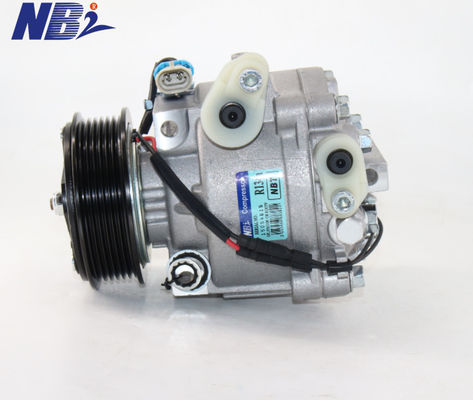

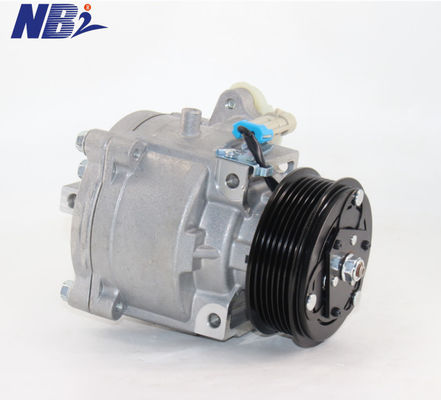

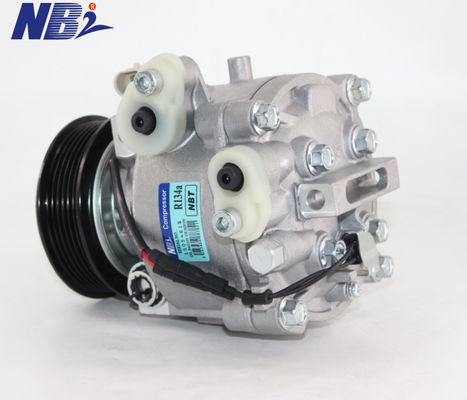

AC.100.4035 Truck Air Conditioner Compressor 24V 12V DC Air Conditioner Compressor

Name: AC.100.4035 Truck Air Conditioner Compressor 24V 12V DC Air Conditioner Compressor
Brand: GUANG ZHOU CFY C&U AUTOMOBILE AIR CONDITIONER CO.LTD
SKU: AKT200A413 AKT011H403T
Availability: InStock

Brand Name:	NBT
Model Number:	AKT200A413 AKT011H403T
MOQ:	1pc
Price:	Negotiation
Payment Terms:	L/C, T/T, MoneyGram, Western Union
Supply Ability:	10000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO9001

Type:

Ac Compressor

Place Of Origi:

Guangdong, China

Brand Name:

NBT

OE NO:

AKT200A413 AKT011H403T

Car Model:

For Buick Encore,Opel;Chevrolet Sonic/Trax MOKKA

Quality:

100% Professional Tested

Product Name:

Ac Air Compressor

Warranty:

12 Months

Condition:

100% New

Size:

Standard Size

Voltage:

12V

Application:

Car Air Conditioner System

Packing:

Neutral Packing

Function:

Car Air Conditioning

Keyword:

Car Ac Compressors

Model Number:

AC.100.4035

Packaging Details:

Wooden box packaging / carton packaging

Supply Ability:

10000pcs/month

Highlight:

Truck Air Conditioner Compressor 24V

Truck Air Conditioner Compressor 12V

12V DC Air Conditioner Compressor

Product Description

Hight Quality AC.100.4035 Truck Air Conditioner Compressor 24 Volt 12V DC Air Conditioner OE AKT200A413 AKT011H403T for Chevrolet and Buick

Products Description

Brand Name	NBT
Place of Origin	Guangdong, China
OE NO.	AKT200A413 AKT011H403T
Size	OEM standard
Warranty	1 year
Condition	New
Car Model	Chevrolet Malibu
Application	Car Air Conditioner System
Certification	ISO 9001
OEM	OEM Services Provided
Condition	100% Brand New
Quality	100% Professional Tested
Voltage	12V
Function	Car Air Conditioning
Model Number	AC.100.4035
Product Name	Ac Air Compressor
Type	Air Conditioner Compressor

Our Service

1. OEM Manufacturing welcome: Product, Package...

2. Sample order

3. We will reply you for your inquiry in 24 hours.

4. after sending, we will track the products for you once every two days, until you get the products. When you got the

goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer

the solve way for you.

About Compressors

1)Rotary vane compressors consist of a rotor with three or four vanes and a carefully shaped

rotor housing. As the compressor shaft rotates, the vanes and housing form chambers.

The R134a is drawn through the suction port into these chambers, which become smaller as

the rotor turns. The discharge port is located at the point where the gas is fully compressed.

The vanes are sealed against the rotor housing by centrifugal force and lubricating oil. The

oil sump and oil pump are located on the discharge side, so that the high pressure forces oil

through the oil pump and then onto the base of the vanes keeping them sealed against the

rotor housing.

During idle an occasional vane noise from the compressor may be heard. This is due to the

time taken for lubricating oil to circulate through the A/C system.

2)Scroll type - Sanden

This compressor uses a unique design with two scrolls, one fixed and one is movable, both are inter-leaved.

The movable spiral is able to ORBIT or oscillate without actually fully rotating. The movable scroll is connected

to the input shaft via a concentric bearing.

As the movable spiral oscillates within the fixed spiral, a number of pockets are formed between the spiral. As

these pockets decrease in size the refrigerant is squeezed, the pressure increases and is discharged

through a reed valve at the discharge port in the rear section of the compressor.

3)Variable stroke - Harrison V5

The Delphi (Harrison) V5 compressor is a non-cycling variable displacement compressor.

The compressor varies displacement to control capacity to meet A/C system demand at all operating conditions. The compressor features a variable angle wobble plate in five (V5) cylinder axial piston design.

Displacement is controlled by a bellows actuated control valve located in the rear cylinder head. This control valve senses and responds to the system suction pressure or A/C system demand.

Through regulation of compressor crankcase pressure, the wobble plate angle, and therefore compressor displacement is variable.

In general, the compressor discharge pressure is much greater than the compressor crankcase. Which is greater than or equal to the compressor suction pressure.

At maximum displacement, compressor crankcase pressure is equal to the compressor suction pressure.

At reduced or minimum displacement, the compressor crankcase pressure is greater than the suction pressure

Installation instructions

1.Before installing,Be sure to clean the air-conditioning system repeatedly, remove the a/c hose, pour it into the hose,condenser, evaporator with detergent, and soak for about 20 minutes until the detergent is clear.

2.It must change new receiver drier.

3.It must clean expansion valve or change new one.

4.Clean condenser and evaporator core.

5.Check radiating fan if working and the temperature cannot be too high.

6.Install new compressor, refill with genuine R134a refrigerant.

FAQ

Q Do you accept small order?

A Yes, small order can accept.

Q What can I get the price?

A We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

Q What is your term of delivery?

A We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choosethe one which is the most convenient or cost effective for you.

Q What about the lead time for the mass production?

A Honestly, it depends on the order quantity and the season you place the order.
