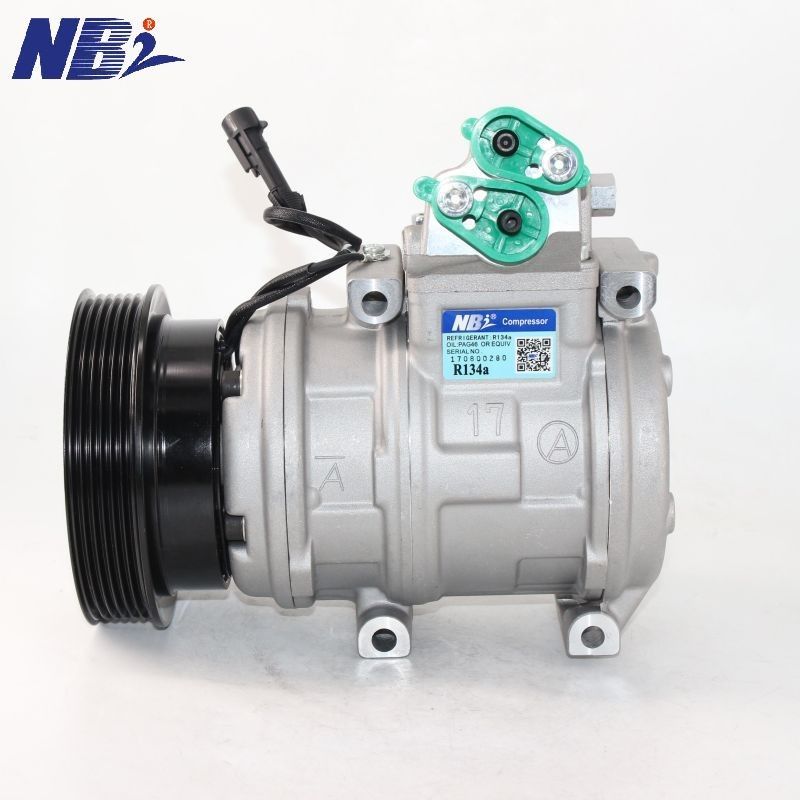

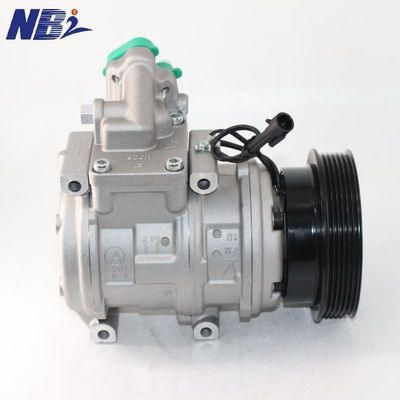

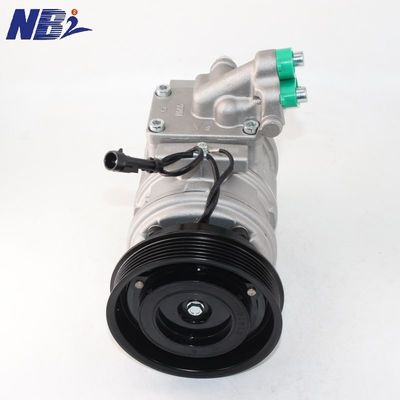

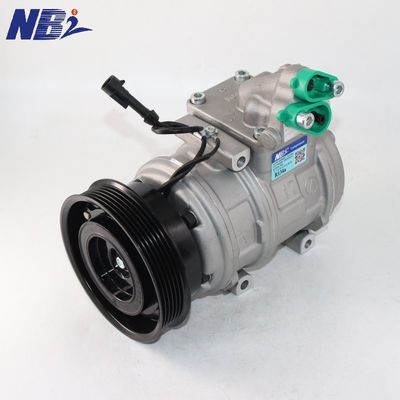

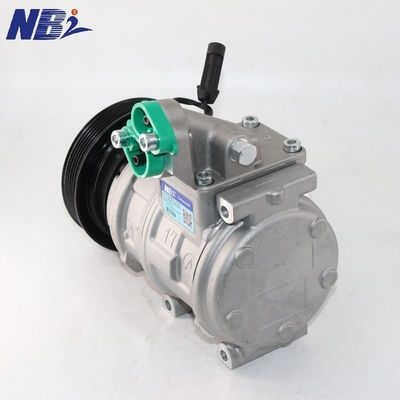

8103200-K84 8103200K84 Vehicle AC Compressor For Great Wall Haval H5

Name: 8103200-K84 8103200K84 Vehicle AC Compressor For Great Wall Haval H5
Brand: GUANG ZHOU CFY C&U AUTOMOBILE AIR CONDITIONER CO.LTD
SKU: 8103200-K84 8103200K84
Availability: InStock

Brand Name:	NBT
Model Number:	8103200-K84 8103200K84
MOQ:	1pc
Price:	Negotiation
Payment Terms:	L/C, T/T, MoneyGram, Western Union
Supply Ability:	10000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO9001

Type:

Vehicle AC Compressor

Place Of Origi:

Guangdong, China

Brand Name:

NBT

OE NO:

8103200-K84 8103200K84

Product Name:

Ac Air Compressor

Car Model:

For Great Wall Haval H5

Warranty:

12 Months

Application:

Car Air Conditioner System

Compressor Model:

10PA17C

Keyword:

Car Ac Compressors

Quality:

100% Professional Tested

Condition:

100% New

Refrigerant:

R134a

Function:

Car Air Conditioning

Size:

Standard Size

Voltage:

12V

Packing:

Neutral Packing

Packaging Details:

Wooden box packaging / carton packaging

Supply Ability:

10000pcs/month

Highlight:

8103200-K84 Vehicle AC Compressor

8103200K84 Vehicle AC Compressor

Product Description

Auto AC Conditioner Compressor For Great Wall Haval H5 8103200-K84 8103200K84

Products Description

Brand Name	NBT
Place of Origin	Guangdong, China
OE NO.	8103200-K84 8103200K84
Size	OEM standard
Warranty	1 year
Condition	New
Car Model	For Great Wall Haval H5
Application	Car Air Conditioner System
Certification	ISO 9001
OEM	OEM Services Provided
Condition	100% Brand New
Quality	100% Professional Tested
Voltage	12V
Function	Car Air Conditioning
Refrigerant	R134a
Product Name	Ac Air Compressor
Type	Air Conditioner Compressor

Our Company

Since its establishment,adhere to the "innovation,the pursuit of excellence" spirit of enterprise, market-centered,science and technology,actively

implement the ISO9001 quality standard system,a high standard to define the quality function,and constantly promote the deepening of enterprise

management ,enterprise operating quality improved steadily,the company detailed business processes, the quality aspects of careful, rigorous

technology standards,advanced production and testing equipment to create superior products and company's effort to provide quality services

guaranteed.

Welcome all interesting colleagues to visit our factory to have a face to face talk,Thank you!

Installation Notes:

1. Separate and clean pipes before installing the compressor.

2. Clean the surface of the condenser and evaporation box. If it is leaked, it needs to be replaced

3. Clean or replace the expansion valve, AC drier pipe filter, be sure to replace

AC Compressor Failure Condition:

1.Normal Condition

2.AC Drier clogged

3.Lack of refrigerant

4.AC Compressor failure

5.Expansion valve is frozen or blocked

6.AC condenser is insufficient and overloaded

WONDERING ABOUT THE CAR AIR CONDITIONING COMPRESSOR?

Most drivers aren’t aware of everything going on under the hood and behind the dash to keep them cool in the summer and the windshield clear in the winter. Thanks to the heat-transfer properties of refrigerant, driven by the car air conditioning compressor, comfort is just a button-press away.

Air Conditioning Parts

The air conditioning system itself is made up of several main parts. The refrigerant flows from the air conditioning (AC)

compressor to the condenser, in front of the radiator, where it releases heat to the atmosphere. Then, heated refrigerant flows to the expansion valve or fixed-orifice tube. Just past this, in the evaporator, it absorbs heat from inside the cabin before heading back to the compressor. Along the way, the refrigerant (usually R-134a or R-1234yf) goes through tubes and hoses, a filter and a dryer.

Aside from the switch to engage the air conditioning, the electrical system uses pressure sensors to determine when to cycle,engage and disengage the electromagnetic (EM) clutch. On conventional vehicles, the clutch is driven by V-belts or the serpentine belt. On hybrid and electric vehicles, the air conditioning compressor is powered directly by a high-voltage electric motor, some of which go up to 400 volts. Less-common are adjustable-swash-plate compressors, which adjust their output without cycling.

Air Conditioning Compressor Basics

The typical car AC compressor is a 12-piston six-bore swash-plate unit. The swash plate is mounted off-axis to the drive shaft, “wobbling” as the shaft is driven by the EM clutch or electric motor. Six double-ended pistons are oscillated by the swash plate,each piston doing double-duty intake and compression. Reed valves control the flow of refrigerant. A fine oil mist circulates with the refrigerant, lubricating moving parts and sealing rubber hoses and seals.

Compressor Maintenance

Because it is a sealed system, the only maintenance that the typical AC compressor needs is regular use to keep lubricant

dispersed throughout the system. When addressing air conditioning problems, refrigerant charge is important to consider, because excessive or insufficient pressure may disable the system. Drive belts need to be clean and tight for positive engagement. Finally, electrical checks confirm proper function of pressure sensors and switches; electromagnetic clutch fuse and relay; and the clutch coil.Oil type and viscosity depend on the refrigerant and the compressor. For example, R-134a compressors are lubricated by polyalkylene glycol (PAG), which may not be compatible with proprietary R-1234yf compressor oils. Viscosity is also important, as lighter PAG 46 oils may not protect compressors requiring heavier PAG 100 or PAG 150 oils.

Replacing an Air Conditioning Compressor

Air conditioning compressors can fail due to age, wear or neglect. Many EM clutches are replaceable, but some EM-clutch and all motor-driven compressors are replaced as an assembly. When changing the AC compressor, such as with a re-manufactured air conditioning compressor, use a recovery machine to extract refrigerant and protect the atmosphere. On reassembly, ensure the proper charge of refrigerant and oil for performance and reliability. These specifications are in the repair manual.Fortunately, car air conditioning isn’t overly complicated, but it is sensitive. If you’re suffering AC problems, the AC compressor might be at the root of them. Be sure to eliminate all other possibilities, however, before delving into this sealed system.

Commitment

We strive to provided our clients an exceptional quality service from the moment you ask for an inquiry. We understand that selecting the right products is essential to your success, which is why we follow the high quality standards from R&D component selection to production assembly to ensure that all of your requirements are completely understood, and can be met in full.

We are always on hand to assit with inquiries, whether it is help or guidance with technical specifications, or just some friendly advice, we are never too busy.

FAQ

Q1. How is quality ensured?

A: All our processes strictly adhere to ISO-9001 procedures. And we have a one year quality warranty B/L issue date.

If the product does not work property as described, and the problem is proven to beat our fault, we will provide exchange services for the same specific item.

Q2. Do you make customer' s auto AC parts?

A:Yes,you can send us samples and we can develop the new models especially for you.

Q3. What about delivery time?

A: lf we have stock of the item you need; we can send goods to you within 2 working days after deposit or 100% payment into our bank account. If we don' t have stock. The time to make each product is different generally, it takes 1 to 15working days.

Q4. How does to control your products?

A: 1.There is advanced equipment, professional and technical workers in the factory

2. Factory will have sample testing on quality before shipment

3.Our QC (QUALITY CONTROL) will check the quality of each product before shipment.

Q5. What about your packing?

A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
